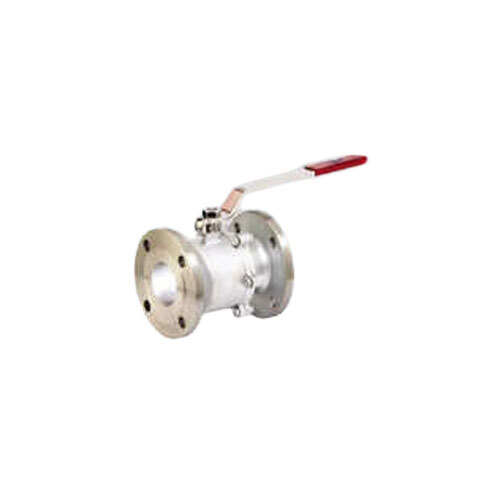

Two Way Flanged End Full Port Ball Valve

Two Way Flanged End Full Port Ball Valve

Two Way, Flanged End, Full Port, Ball Valve

Dimensions

Size	Inch	1/2 inch	3/4 inch	1 inch	1 1/4 inch	1 1/2 inch	2 inch	2 1/2 inch	3 inch	4 inch	5 inch	6 inch	8 inch
Size	DN	15	20	25	32	40	50	65	80	100	125	150	200
L-F to F		107.9	117.3	127	139.7	165.1	177.8	192	203	229	254	267	292
G-NB		12.5	19	25	32	38	50	63	75	100	125	150	200
D		89	98.5	108	117.3	127	152.4	177.8	190.5	228.6	254	279	343
E		60.3	69.8	79.3	88.9	98.4	120.6	139.7	152.4	190.5	215.9	241.3	298.4
F		35	43	50.8	63.5	73	92.1	104.7	127	157.2	185.7	215.9	269.9
N		4	4	4	4	4	4	4	4	8	8	8	8
O		15.8	15.8	15.8	15.8	15.8	19	19	19	19	22.5	22.2	22.2
T		10.2	10.5	11.2	14.2	14.5	15.8	17.5	19	23.8	23.8	25.5	28.4

Antistatic Devise :

When Antistatic electric charge is generated due to high velocity an friction of fluid Layers and concentrated on the valve. The spring loaded ball is coupled with installed on the stem which keeps continuity throughout the valve and discharges the static current.
These eliminates the possibilities of fire hazard, especially while handling inflammable fluids.

Unit of Measure	Piece/Pieces
Color	Silver
Power Mode	Manual
Condition	New
Processing Type	Standard
Usage	Industrial
Size	Standard
Delivery Time	1 Days
Supply Ability	1 Per Day

AUTOMAC Process Instrument & Valve Solution help you reduce cost ,and increase safety for your plant
